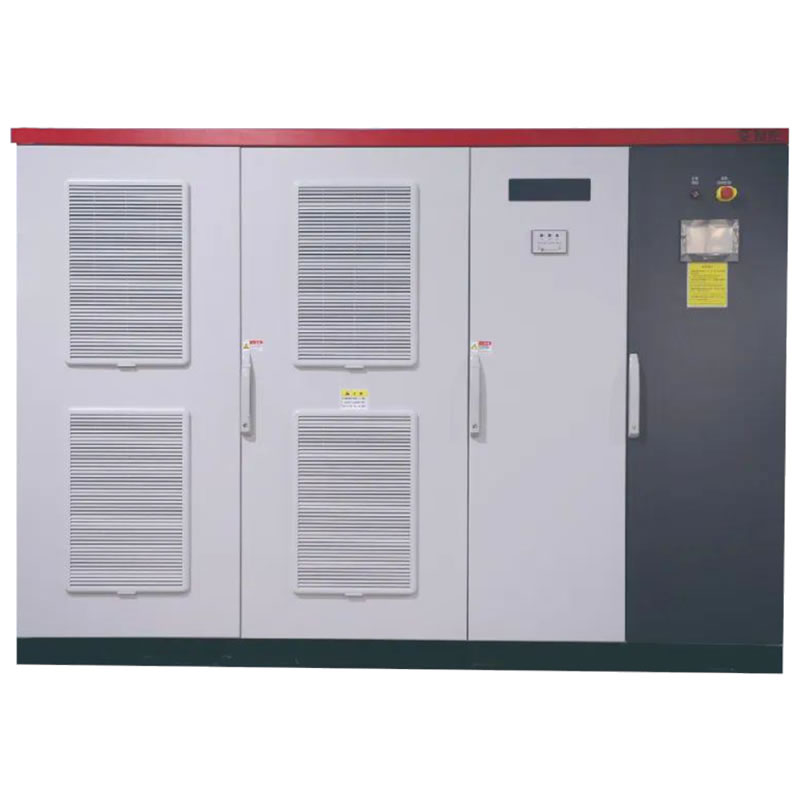

Model type | CFV9000A 2-quadrant | CFV9000A 4-quadrant | |
Applied motor power (kW) | 200kW-12000kW | 200kW-2000kW | |
| 4-pole motor is the standard, 6-12-pole motor is selected according to current | |||
Rated output | Rated power (kW) | 200kW-12000kW | 200kW-2000kW |
Rated current (A) | Rated current of motor rated voltage | ||
Overload capacity | 105% continuous, 130% allow 1 minute, 150% allow 3 seconds, 180% immediate protection | 150% continuous, 180% allow 1 minute, 250% immediate protection | |
Output voltage (kV) | Three-phase: 0-6kV, (0-10kV) | ||
Waveform | Multiplexed SPWM sine wave | ||
Input voltage | Phase, Frequency, Voltage | Three phase 50Hz 6kV(10kV) | |
Allowed volatility | Voltage: -10%～+10% Frequency: ±5% -15%～-35% derating for continuous operation | ||
Basic Peformance | Start frequency | 0-10Hz can be set | |
Accuracy | Analog setting:less than 0.3%of max frequency setting value (25±10°C) Digital setting: less than 0.1% of max frequency setting value (-10 to +50°C) | ||
Resolution | Analog setting: 1/2000 of the maximum frequency setting value Digital setting: 0.01HZ (below 99.99HZ), 0.1HZ (above 100HZ) | ||
Efficiency | >98%, at rated output | ||
Power factor | ＞0.95 | ||
Control | Acceleration and deceleration time | 0.01～6000.0S, the acceleration and deceleration time can be set separately | |
Voltage/Frequency Characteristics | Set by the set V/F curve | ||
PID | Manually set PID parameters | ||
Auxiliary function | V/F curve, low frequency compensation, rated current, current protection limit setting | ||
High voltage isolation | Electromagnetic coupling, multi-channel fiber optic transmission | ||
Control power input | AC 220V 2kVA | ||
Run | Run operation | Local control (touch screen, cabinet door switch) operation, remote external control operation, upper computer operation (optional) | |
Given frequency | Touch screen digital given, multi-speed given, external control analog signal (DC4 ~ 20MA) given | ||
| Running status output | Relay status output, inverter fault, alarm, running/stop and other status indication | ||
Touch screen | Input/output voltage, input/output current, set value, fault status of each unit, running status, transformer status, bus voltage of each unit, etc. | ||
Protection function | Motor overcurrent, whole machine overvoltage, whole machine undervoltage, unit overcurrent, unit overvoltage, unit overheating, unit input phase loss, optical fiber communication failure, etc. | ||
Environment | Applicable places | Indoor, no corrosive or conductive gas, dust, direct sunlight, below 1000 meters above sea level (can be customized for high altitude areas) | |
Ambient temperature/humidity | -10℃～＋40℃/20～90%RH without condensation | ||
Vibration | 5m/s2 (below 0.6g) | ||
Storage temperature | -20 to +65°C (suitable for short-term storage such as transportation) | ||
| Cooling method and enclosure protection grade | Forced air cooling/IP31 | ||
6KV 2-quadrant series (excluding tangent cabinet/connection cabinet)
Specifications | Rated Capacity (kVA) | Adapted motor rated power (kW) | Adapted motor rated current (A) | Overall dimensions (W*D*H) | Weight (kG) |
CFV9000A-315-6K-F | 315 | 250 | 30 | 1700*1500*1900 | 1900-2410 |
CFV9000A-350-6K-F | 350 | 280 | 34 | ||
CFV9000A-400-6K-F | 400 | 315 | 38 | ||
CFV9000A-450-6K-F | 450 | 355 | 43 | ||
CFV9000A-500-6K-F | 500 | 400 | 48 | ||
CFV9000A-560-6K-F | 560 | 450 | 54 | ||
CFV9000A-630-6K-F | 630 | 500 | 60 | ||
CFV9000A-700-6K-F | 700 | 560 | 67 | ||
CFV9000A-790-6K-F | 790 | 630 | 76 | 2200*1700*2120 | 3250-4000 |
CFV9000A-890-6K-F | 890 | 710 | 85 | ||
CFV9000A-1000-6K-F | 1000 | 800 | 96 | ||
CFV9000A-1125-6K-F | 1125 | 900 | 108 | ||
CFV9000A-1250-6K-F | 1250 | 1000 | 120 | ||
CFV9000A-1400-6K-F | 1400 | 1120 | 135 | ||
CFV9000A-1560-6K-F | 1560 | 1250 | 150 | 3300*1700*2420 | 4950-5600 |
CFV9000A-1750-6K-F | 1750 | 1400 | 168 | ||
CFV9000A-2000-6K-F | 2000 | 1600 | 192 | 3600*1700*2420 | 6900-7300 |
CFV9000A-2250-6K-F | 2250 | 1800 | 217 | ||
CFV9000A-2500-6K-F | 2500 | 2000 | 241 | ||
CFV9000A-2800-6K-F | 2800 | 2250 | 270 | ||
CFV9000A-3125-6K-F | 3125 | 2500 | 301 | ||
CFV9000A-3500-6K-F | 3500 | 2800 | 337 | ||
CFV9000A-4100-6K-F | 4100 | 3250 | 390 | 4600*1700*2420 | 11750 |
CFV9000A-5000-6K-F | 5000 | 4000 | 481 | 5900*1700*2420 | 11800 |
CFV9000A-6250-6K-F | 6250 | 5000 | 601 | 6500*1700*2620 | 12950-13600 |
Specifications | Rated Capacity (kVA) | Adapted motor rated power (kW) | Adapted motor rated current (A) | Overall dimensions (W*D*H) | Weight (kG) |
CFV9000A-315-6K-T | 315 | 250 | 30 | 2200*1700*2120 | 2400-4430 |
CFV9000A-350-6K-T | 350 | 280 | 34 | ||
CFV9000A-400-6K-T | 400 | 315 | 38 | ||
CFV9000A-450-6K-T | 450 | 355 | 43 | ||
CFV9000A-500-6K-T | 500 | 400 | 48 | ||
CFV9000A-560-6K-T | 560 | 450 | 54 | ||
CFV9000A-630-6K-T | 630 | 500 | 60 | ||
CFV9000A-700-6K-T | 700 | 560 | 67 | ||
CFV9000A-790-6K-T | 790 | 630 | 76 | ||
CFV9000A-890-6K-T | 890 | 710 | 85 | ||
CFV9000A-1000-6K-T | 1000 | 800 | 96 | ||
CFV9000A-1125-6K-T | 1125 | 900 | 108 | ||
CFV9000A-1250-6K-T | 1250 | 1000 | 120 | ||
CFV9000A-1400-6K-T | 1400 | 1120 | 135 | 3300*1700*2420 | 5520-5600 |
CFV9000A-1560-6K-T | 1560 | 1250 | 150 | ||
CFV9000A-1750-6K-T | 1750 | 1400 | 168 | ||
CFV9000A-2000-6K-T | 2000 | 1600 | 192 | 3600*1700*2420 | 5850-6090 |
CFV9000A-2250-6K-T | 2250 | 1800 | 217 | ||
CFV9000A-2500-6K-T | 2500 | 2000 | 241 | ||
CFV9000A-3125-6K-T | 3125 | 2500 | 301 | 5550*1700*2420 | 10000 |
Specifications | Rated Capacity (kVA) | Adapted motor rated power (kW) | Adapted motor rated current (A) | Overall dimensions (W*D*H) | Weight (kG) |
CFV9000A-315-10K-T | 315 | 250 | 18 | 2800*1700*2120 | 3500-6450 |
CFV9000A-350-10K-T | 350 | 280 | 20 | ||
CFV9000A-400-10K-T | 400 | 315 | 23 | ||
CFV9000A-450-10K-T | 450 | 355 | 26 | ||
CFV9000A-500-10K-T | 500 | 400 | 29 | ||
CFV9000A-560-10K-T | 560 | 450 | 32 | ||
CFV9000A-630-10K-T | 630 | 500 | 36 | ||
CFV9000A-700-10K-T | 700 | 560 | 40 | ||
CFV9000A-790-10K-T | 790 | 630 | 45 | ||
CFV9000A-890-10K-T | 890 | 710 | 51 | ||
CFV9000A-1000-10K-T | 1000 | 800 | 58 | ||
CFV9000A-1125-10K-T | 1125 | 900 | 65 | ||
CFV9000A-1250-10K-T | 1250 | 1000 | 72 | ||
CFV9000A-1400-10K-T | 1400 | 1120 | 81 | ||
CFV9000A-1560-10K-T | 1560 | 1250 | 90 | ||
CFV9000A-1750-10K-T | 1750 | 1400 | 101 | ||
CFV9000A-2000-10K-T | 2000 | 1600 | 115 | ||
CFV9000A-2250-10K-T | 2250 | 1800 | 130 | 4100*1700*2420 | 9250-9400 |
CFV9000A-2500-10K-T | 2500 | 2000 | 144 | ||
CFV9000A-2800-10K-T | 2800 | 2250 | 162 | ||
CFV9000A-3125-10K-T | 3125 | 2500 | 180 | ||
CFV9000A-3500-10K-T | 3500 | 2800 | 202 | 4400*1700*2420 | 9900-9950 |
CFV9000A-3940-10K-T | 3940 | 3150 | 227 |
Specifications | Rated Capacity (kVA) | Adapted motor rated power (kW) | Adapted motor rated current (A) | Overall dimensions (W*D*H) | Weight (kG) |
CFV9000A-315-6K-F | 315 | 250 | 30 | 2700*1500*1900 | 1900-2410 |
CFV9000A-350-6K-F | 350 | 280 | 34 | ||
CFV9000A-400-6K-F | 400 | 315 | 38 | ||
CFV9000A-450-6K-F | 450 | 355 | 43 | ||
CFV9000A-500-6K-F | 500 | 400 | 48 | ||
CFV9000A-560-6K-F | 560 | 450 | 54 | ||
CFV9000A-630-6K-F | 630 | 500 | 60 | ||
CFV9000A-700-6K-F | 700 | 560 | 67 |
Specifications | Rated Capacity (kVA) | Adapted motor rated power (kW) | Adapted motor rated current (A) | Overall dimensions (W*D*H) | Weight (kG) |
CFV9000A-315-10K-F | 315 | 250 | 18 | 2700*1500*1900 | 2160-3100 |
CFV9000A-350-10K-F | 350 | 280 | 20 | ||
CFV9000A-400-10K-F | 400 | 315 | 23 | ||
CFV9000A-450-10K-F | 450 | 355 | 26 | ||
CFV9000A-500-10K-F | 500 | 400 | 29 | ||
CFV9000A-560-10K-F | 560 | 450 | 32 | ||
CFV9000A-630-10K-F | 630 | 500 | 36 | ||
CFV9000A-700-10K-F | 700 | 560 | 40 | ||
CFV9000A-790-10K-F | 790 | 630 | 45 | ||
CFV9000A-890-10K-F | 890 | 710 | 51 | ||
CFV9000A-1000-10K-F | 1000 | 800 | 58 | ||
CFV9000A-1125-10K-F | 1125 | 900 | 65 | ||
CFV9000A-1250-10K-F | 1250 | 1000 | 72 |
