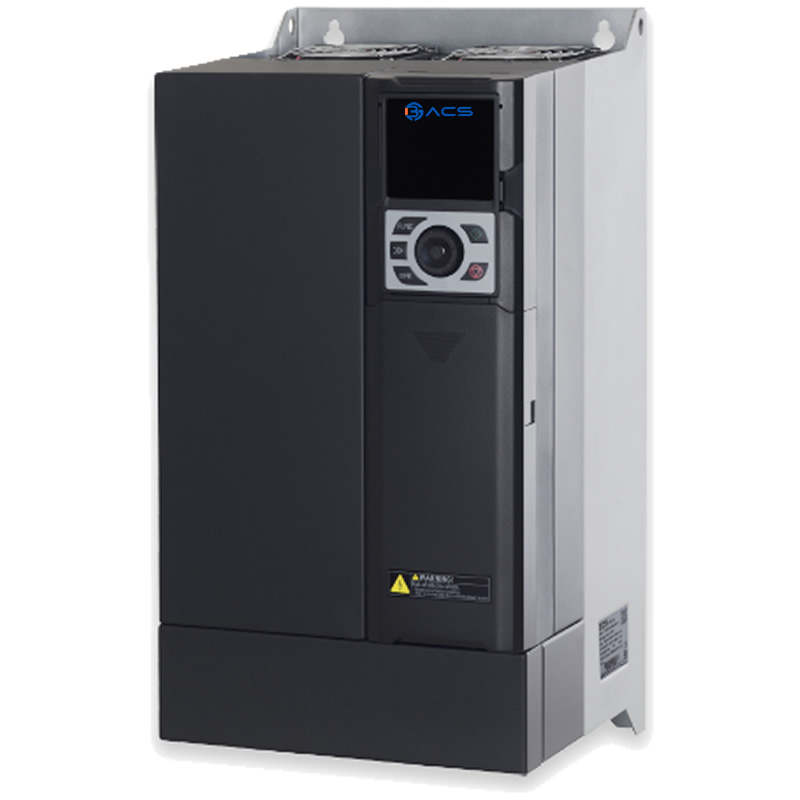

XFC550 Variable Frequency Drive – 3 Phase 380V Motor Speed Controller

Description

Features
● 4 sets of motor control parameters
The system is equipped with four sets of motor control parameters to accommodate four motors with varying process requirements and power segments.
This feature addresses the issue of VFD backup and replacement at the project site. The motor parameters can be preset for each group, allowing for seamless switching through the DI terminal during use, without the need for additional adjustments.
● Flexible port configuration：
Users have the flexibility to choose I/O expansion cards based on their specific digital and analog function requirements, offering convenience for design and debugging.
● Rich extensions:
The XFC550 series inverters support the simultaneous application of two built-in expansion cards, which can be combined to realize a variety of complex system control functions.
One channel is for function and communication extensions (such as IO, PLC programmable, etc.), while the other channel is for an encoder expansion card (compatible with differential, OC interface encoder, and resolver expansion card, etc.).
● High-performance stall control:
The high-performance over-current and over-voltage stall control can effectively meet the varied load requirements of different mechanical characteristics, allowing the motor to adapt to both hard and soft mechanical characteristics. This makes it suitable for a wide range of engineering equipment applications.

Basic Parameters

Item		Parameter
Power supply	Rated supply voltage	3 phase 380V ~ 480V
	Allowed voltage fluctuations	-15％~+10％
	Rated supply frequency	50/60Hz
	Allowed Frequency Fluctuations	±5％
Output	Max output voltage	Three-phase 380V~480V Go after the input voltage
	Max Output frequency	500Hz
	Carrier Frequency	0.5 ~ 16kHz (automatic adjustment according to the temperature, and the adjustment range differs for different models )
	Overload capacity	150% rated current 60s; 180% rated current 3s.
Basic Functions	Frequency setting resolution	Digital setting: 0.01Hz Analog setting: max frequency * 0.025%
	Control Mode	Open Loop Vector Control (SVC) Closed Loop Vector Control (FOC) V/f Control
	Pull-in torque	0.3Hz/150％ (SVC) 0 Hz/180% (FOC)
	Speed range	1 : 200(SVC) 1 : 1000 (FOC)
	Speed Stabilizing accuracy	±0.5％(SVC) ±0.02％ (FOC)
	Torque Control Precision	±5％ (FOC)
	Torque boost	Automatic torque boost Manual torque increase 0.1% ~ 30.0%
	V/F Curve	Three ways: linear type; multi-point type; N-th power V/F curve (n=1.2, 1.4, 1.6, 1.8, 2)
	Acceleration and deceleration curve	Linear or S-curve acceleration and deceleration; 4 kinds of acceleration and deceleration time. Adjustable range 0.0~6500.0S
	DC braking	Frequency of DC braking: 0.00Hz ~ max frequency Braking time: 0.0s ~ 36.0s Braking action current value: 0.0% ~ 100.0%
	Jogging control	Jogging frequency range：0.00Hz ~ 50.00Hz Jog acceleration- deceleration time：0.0s ~ 6500.0s
	Simple PLC, multi-stage speed operation	Up to 16-stage speed operation via built-in PLC or control terminal
	Built-in PID	Implementing closed-loop control in process control applications
	Overvoltage and overcurrent stall control	Automatically limit current and voltage during operation to prevent fault shutdown due to frequent over-current and over-voltage
	Fast current limiting function	Reduce overcurrent fault shutdown to ensure the normal operation of theVFD
Control interface	Digital input	5 multi-function digital inputs. One of which supports max 100kHz pulse input function
	Analog input	2 analog inputs. Both supporting 0 ~ 10V or 0 ~ 20mA analog input, switch voltage or current input via jumper
	Digital output	2 open-collector digital outputs. One of which supports max 100KHz square wave output
	Analog output	1 analog output. Supporting 0 ~ 10V or 0 ~ 20mA analog output, switch voltage or current output via jumper
	Relay output	1-channel relay output, including 1 normally open contact, 1 normally closed contact
	Standard communication interface	1 channel RS485 communication interface
Expansion interface	Function expansion interface	Connectable to IO expansion card, PLC programmable expansion card, etc.
Operation panel	LED digital display	5-digit display of parameters and settings
	Indicator light	4 status indications, 3 unit indications
	Button’s Function	5 function buttons including 1 multi-function button. The function can be set via parameter P0 – 00
	Shuttle Knob	Add, minus and confirm
	Parameter copy	Fast upload and download parameters
Protective function	Basic protection	Input and output phase loss, overvoltage, undervoltage, overheating, overload, overcurrent, short circuit, voltage and current limiting, fast current limiting and other protection functions
Environment	Operation condition	Indoor, no conductive dust and oil, etc.
	Operating ambient temperature	-10°C ~ +40°C (40°C ~ 50°C, derate 1.5% for every 1°C increase in temperature
	Humidity	Less than 95% RH, no condensation
	Operating altitude	No derating below 1000m, derate by 1% for every 100m elevation above 1000m
	Ambient temperature for Storage	-20℃ ~ +60℃
	Vibration	Less than 5.9m/s² (0.6g)
	Installation method	Wall-mounted or flush-mounted installation in the cabinet (Need to choose the appropriate installation accessories)
	IP degree of protection	IP20

Model Specifications

Model	Motor power / kW	Rated input Capacity / kVA	Rated input current / A	Rated output current / A
XFC550-3P4-1k50G-BEN-20	1.5	3.2	4.8	4
XFC550-3P4-2k20G-BEN-20	2.2	4.5	6.8	5.6
XFC550-3P4-4k00G-BEN-20	4	7.9	12	9.7
XFC550-3P4-5K50G-BEN-20	5.5	11	16	13
XFC550-3P4-7K50G-BEN-20	7.5	14	21	17
XFC550-3P4-11K0G-BEN-20	11	20	30	25
XFC550-3P4-15K0G-BEN-20	15	27	41	33
XFC550-3P4-18K5G-BEN-20	18.5	33	50	40
XFC550-3P4-22K0G-BEN-20	22	38	57	45
XFC550-3P4-30K0G-NEN-20	30	51	77	61
XFC550-3P4-37K0G-NEN-20	37	62	94	74
XFC550-3P4-45K0G-NEN-20	45	75	114	90
XFC550-3P4-55K0G-NEN-20	55	91	138	109
XFC550-3P4-75K0G-NEN-20	75	123	187	147
XFC550-3P4-90K0G-NEN-20	90	147	223	176
XFC550-3P4-110KG-NEN-20	110	179	271	211
XFC550-3P4-132KG-NEN-20	132	167	253	253
XFC550-3P4-160KG-NEN-20	160	201	306	303
XFC550-3P4-185KG-NEN-20	185	233	353	350
XFC550-3P4-200KG-NEN-20	200	250	380	378
XFC550-3P4-220KG-NEN-20	220	275	418	416
XFC550-3P4-250KG-NEN-20	250	312	474	467
XFC550-3P4-280KG-NEN-20	280	350	531	522
XFC550-3P4-315KG-NEN-20	315	393	597	588
XFC550-3P4-355KG-NEN-20	355	441	669	659
XFC550-3P4-400KG-NEN-20	400	489	743	732
XFC550-3P4-450KG-NEN-20	450	550	835	822

Note: Please contact our sales staff for model selection of 500K and above.

Dimensions
Model
W
H
D
w
h
h1
d
t
Fixing screws
Net Weight
XFC550-3P4-1K50G-BEN-20
110
228
177
75
219
200
172
1.5
M5
2.5kg/
5.5lb
XFC550-3P4-2K20G-BEN-20

Model	W	H	D	w	h	h1	d	t	Fixing screws	Net Weight
XFC550-3P4-4K00G-BEN-20	140	268	185	100	259	240	180	1.5	M5	3.2kg/7.1lb
XFC550-3P4-5K50G-BEN-20
XFC550-3P4-7K50G-BEN-20
XFC550-3P4-11K0G-BEN-20	170	318	225	125	309	290	220			5kg/11lb
XFC550-3P4-15K0G-BEN-20
XFC550-3P4-18K5G-BEN-20	190	348	245	150	339	320	240			6kg/13.2lb
XFC550-3P4-22K0G-BEN-20

Model	W	H	D	w	h	h1	d	t	Fixing screws	Net Weight
XFC550-3P4-30K0G–NEN-20	260	500	260	200	478	450	255	1.5	M6	17kg/37.5lb
XFC550-3P4-37K0G–NEN-20
XFC550-3P4-45K0G–NEN-20	295	570	307	200	550	520	302	2	M8	22kg/48.5lb
XFC550-3P4-55K0G–NEN-20
XFC550-3P4-75K0G–NEN-20	350	661	350	250	634	611	345	2	M10	48kg/105.8lb
XFC550-3P4-90K0G–NEN-20
XFC550-3P4-110KG–NEN-20
XFC550-3P4-132KG–NEN-20	450	850	355	300	824	800	350	2	M10	91kg/200.7lb
XFC550-3P4-160KG–NEN-20

Model	W	H	D	w	h	h1	h2	d	W1	Fixing screws	Net Weight
XFC550-3P4-185KG-NEN-20	340	1218	560	200	1150	1180	53	545	400	M12	210kg/463.1lb
XFC550-3P4-200KG-NEN-20
XFC550-3P4-220KG-NEN-20
XFC550-3P4-250KG-NEN-20
XFC550-3P4-280KG-NEN-20
XFC550-3P4-315KG-NEN-20	340	1445	560	200	1375	1410	56	545	400		245kg/540.2lb
XFC550-3P4-355KG-NEN-20
XFC550-3P4-400KG-NEN-20
XFC550-3P4-450KG-NEN-20

Accessories (Optional)

Image	Expansion type	Model No.	Function	Install port	Install quantity
	IO expansion card	XFC5-IOC-00	5 digital inputs, 1 analog input, 1 relay output, 1 open collector output, and 1 analog output can be added, with CAN interface.	X630	1
	Programmable expansion card	XFC5-PLC-00	Connect with the VFD to form a PLC+VFD combination, compatible with Mitsubishi PLC programming environment. The card has 5 digital inputs, 1 analog input, 2 relay outputs, 1 analog output, and RS485 interface.	X630	1
	Profibus-DP expansion card	XFC5-PFB-00	It has Profibus-DP communication function, fully supports Profibus-DP protocol, and supports baud rate adaptive function, which allows the VFD to be connected to the Profibus communication network to realize real-time reading of all function codes of the VFD and realize field bus control.	X630	1
	CANopen expansion card	XFC5-CAN-00	The VFD can be connected to the high-speed CAN communication network to realize field bus control. The CANopen expansion card supports Heartbeat protocol, NMT messages, SDO messages, 3 TPDOs, 3 RPDOs, and emergency objects.	X630	1
	Ethercat expansion card	XFC5-ECT-00	With Ethercat communication function and fully supports the Ethercat protocol, which allows the VFD to be connected to the Ethercat communication network to realize real-time reading of the VFD function code and field bus control.	X630	1
