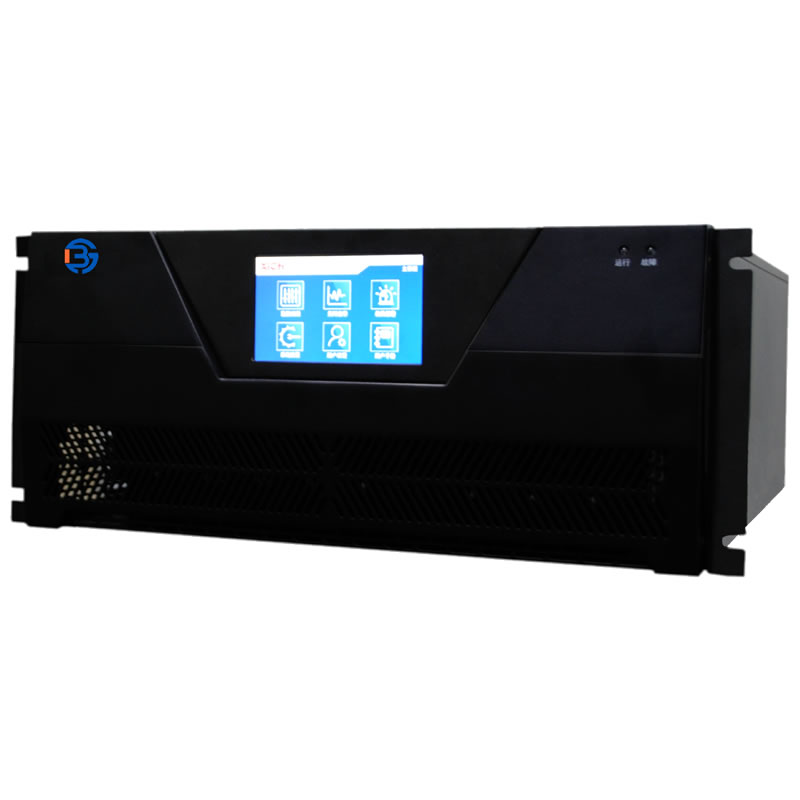

XPQ Series Active Harmonic Filter (AHF) – Power Quality Solution for 400V & 690V Systems

Category: Power Quality Devices Tags 400V, 690V, ActiveHarmonicFilter, DataCenter, HVAC, IndustrialAutomation, OEMSupplier, PowerQuality, RenewableEnergy, THDReduction

Description

Features
1.Comprehensive compensation
It can achieve three functions: harmonic control, reactive power compensation, and regulation of three-phase unbalanced currents, providing comprehensive compensation for power quality issues.
The three functions can be combined and prioritized based on the load environment and specific needs.
2.Wide filtering range and fast response
The system can compensate for 2-50 harmonics simultaneously, or it can be set to compensate for a specific harmonic. The total current distortion rate after compensation is guaranteed to be less than 5%.
The harmonic current detection algorithm utilizes the efficient TTA algorithm, which is both fast and accurate, enabling a full response time of just 10ms.
3.High-end quality of core components
German original IGBT module, three-level topology.
The control system is comprised of the American TIDSP control chip, as well as ALTERA and CYCLONE 3 series FPGA chips, making it a powerful three-core system.
Additionally, TI’s double-ended high-speed input 12-bit A/D data conversion chip enhances the accuracy and reliability of signal sampling.
4.Efficient heat dissipation
The layered heat dissipation design creates an independent air duct, resulting in improved heat dissipation performance and effective isolation of dust and other pollutants.
5.Independent fan, detachable
The fan can be easily disassembled and assembled independently, making it convenient to replace and enhancing the reliability of heat dissipation.
6.Modular design
The combination of different capacity modules can be customized to enhance the overall reliability and maintainability of the entire machine.
7.Human-Machine Interface
Single modules can be equipped with a 5-inch LCD touchscreen, multiple modules can use an external 7-inch LCD touchscreen.
It is capable of monitoring a wide range of operating data for the product in real-time and also allows for online modification of control parameters.
Easy to use and can be paired with a mobile phone app for remote control.

Basic Parameters

Product series	XPQ
Voltage class	400V (±15%)					690V (±15%)
Single unit’s filter capability（A）	30	50	75	100	150	100
Phase/wire	3-phase 4-wire or 3-phase 3-wire
Working frequency	50 (±10%)
Number of filtering harmonic wave	2 ~ 50 times (All or selected harmonic frequencies can be eliminated)
Neutral filter capability	Three times the effective value of the phase current
Filtering capability	＞97%
CT demand	3 current transformers; precision above 0.5 grade; secondary current 5A
compensation method	Harmonic compensation, reactive power compensation
Instantaneous response time	40μs
Full response time	10ms
IGBT switch frequency	20kHz
Module extension capability	Up to 10 functional modules can be extended
Protection function	Overcurrent, grid voltage, undervoltage, overheating, busbar overvoltage, short circuit, fan failure, power failure and current limiting protection, etc.
Interface display information	1. Voltage and current of each phase, power factor, THD and other parameters 2. Grid, load current waveform, three-phase voltage waveform 3. Three-phase IGBT temperature display 4. Operation mode setting, parameter setting
Overload protection	Set current limiting capability with parameters
Communication	RS232, RS485, Optional WIFI, GPRS
Cooling method	Forced cooling
Degree of protection	IP20，higher protection class can be customized
Color	Matt black, other colors are available upon request
Installation Environment	Temperature：-10℃~+40℃ Humidity: max 95% RH (no condensation)
Altitude	It is recommended that the installation altitude does not exceed 1500 meters, and higher altitudes are in accordance with GB/T3859.2. For every 100 meters increase in altitude, there is a 1% decrease in capacity.
Scope of application	3-phase 4-wire is suitable for power grid systems with neutral lines, and can filter out phase line and neutral line harmonics at the same time.

Model Specifications

Dimensions

Drawer type

Model No.	Dimensions （mm)
Model No.	W	H	D	w	d	h	Set screw	Net weight（kg）
XPQ – EA – 4L – 030	484	200	640	465	158	610	M6	34
XPQ – EA – 4L – 050
XPQ – EA – 4L – 075
XPQ – EA/MA – 4L – 100
XPQ – EA/MA – 4L – 150	544	250	646	525	180	610		47
XPQ – MA – 4L – 050	392	200	555	373	158	530		29
XPQ – MA – 4L – 075	392	200	555	373	158	530		29

Wall-mounted type

Model No.	Dimensions （mm)
	W	H	D	w	d	h	Set screw	Net weight（kg）
XPQ – EA – 4L – 030	440	657	212	375	633	/	M8	34
XPQ – EA – 4L – 050
XPQ – EA – 4L – 075
XPQ – EA/MA – 4L – 100
XPQ – EA/MA – 4L – 150	500	657	262	375	633	/		48
XPQ – MA – 4L – 050	348	577	208	275	553	/		30
XPQ – MA – 4L – 075						/		30

Drawer type (lightweight)
Model No.
Dimensions （mm)
W
H
D
w
d
h
Set screw
Net weight（kg）
XPQ – CF – 4L – 030
88
520
420
/
507.6
/
M6
15
XPQ – CF – 4L – 050
Wall-mounted (lightweight)
Model No.
Dimensions （mm)
W
H
D
w
d
h
Set screw
Net weight（kg）
XPQ – CF – 4L – 030
460
473
101.2
350
454
/
M8
15
