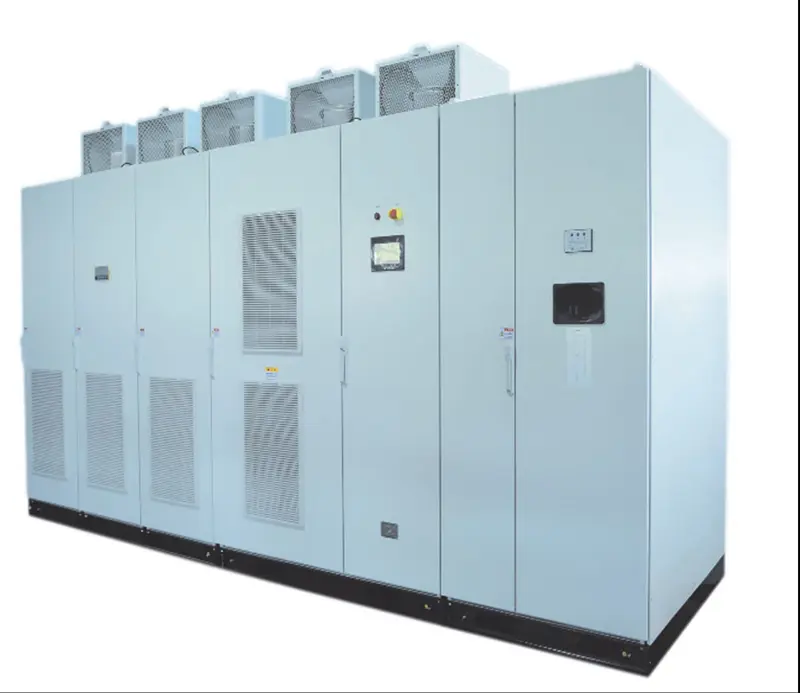

Medium Voltage VFDs(VSDs)

Category: Medium Voltage Drive Tag Medium Voltage VFDs

Description

We can provide customers with high-performance, flexible variable frequency drives with voltage levels from 3.3kV to 10kV.

A medium voltage variable frequency drive (MV VFD) is a type of electrical drive that is used to control the speed of medium voltage electric motors by varying the frequency and voltage of the power supplied to the motor.

Variable Frequency Drive (VFD):

Also known as an adjustable-frequency drive, variable-speed drive(VSD), AC drive, or inverter drive.

MV Vfds Ordering Instructions

When choosing a medium voltage VFD model, it’s crucial to take into account factors such as the load and the on-site working conditions.

If you have ordering requirements, please download and fill out the form provided below and then get in touch with us.

We will provide more detailed information after receiving your request information.

MV VFD Model selection form

CFV9000A VFD				MaxWell VFD
All-in-one series		Basic series
6kV	10kV	6kV	10kV	6kV	10kV
200~560kW	200~1000kW	200~5000kW	200~9000kW	185~5000kW	220~10000kW
Forced air cooling
Environment: Avoid direct sunlight, no corrosive, flammable gases, conductive dust, water droplets, salt, dust, vibration, etc. Altitude: <1000m, derate when used above 1000m; Operating temperature: 0 ~ 40 degrees Celsius Relative humidity: <90%, no condensation; Place of use: indoors
IP31				IP30
GeneralLoads: Fans, water pumps, Compressor, Belt conveyor… Special loads: Compactors, crushers, extruders, mixers, mills, kilns, etc.
CE certified. EN 61000-6-4:2007 EN 61000-6-2: 2005 EN 61000-3-2:2019 EN 61000-3-3:2013 EN61800-5-1:2007+A1+A11:2021

Voltage Level:

The IEC and internationally accepted standards define the medium voltage range as between 1kV and 35kV. This range is generally suitable for industrial and commercial use.

In GB/T 2900.50-2008, high voltage (HV) is defined as: an AC voltage level higher than 1kV and lower than 330KV in the power system.

Consequently, VFDs exceeding 1kV are commonly referred to as “high voltage VFDs” in China.
